Chevrolet / GMC 1500-2500-3500 Dynamic LED Headlight Adapter (2022-2025)

Looking for a way to connect accessories such as grille-mounted marker lights or backlit LED Pods seamlessly to your 2022+ 1500/2500/3500 Parking Light circuit? This adapter allows complete Plug-and-Play operation and is compatible with SELECT 2022+ 1500/2500/3500 trucks – See fitment chart below to make sure your truck is supported.

Circuits Provided:

• Parking
• DRL
• Turn Signal
• Alt Turn Signal (opposite side turn signal)
• Ground

Features and Benefits:

• Provides access to select headlamp circuits.
• The best way to power accent lights, turn signals, or any grille that has LED running/marker lights. Also makes powering backlights found on some LED Light Bars/ Pods very simple.
• Simple way to control LED’s with integrated switchback turn signals.
• Can also be used as a relay trigger.
• No cutting or splicing required - just plug the new adapter into your existing factory connections and then use the provided pigtail to connect the desired circuits.
• Maintains your factory headlight warranty.
• Only OEM components are used - don’t settle for anything less!
• Assembled in the USA!

• 2022-2025 Chevrolet Silverado 1500 (All Trims)*
• 2022-2025 GMC Sierra 1500 (All Trims)*
• 2024-2025 Chevrolet Silverado 2500/3500 (All Trims)
• 2024-2025 GMC Sierra 2500/3500 (All Trims)

*Note: For the 2022 model year, Chevrolet/GMC each produced two body styles for the 1500 trucks. This adapter will only work with the New body style (aka Refreshed) trim. If you have the Limited (aka LTD) trim, please see SKU #20334

*For 2020-2023 2500/3500 HD trucks, please see SKU #20334

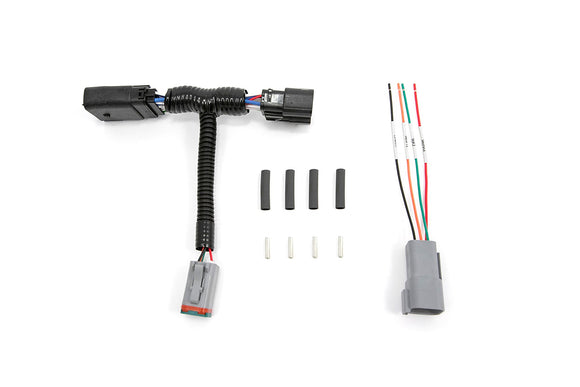

What’s Included:

• One 6-inch adapter with weatherproof connectors
• Deutsch Pigtail (Starkey SKU# 5019)
• 5 Year Limited Warranty

Technical Specifications:

• Max Continuous Amp Draw: 2
• For 12v System

Installation:

• Installation difficulty =  Low
• Installation time = 10 minutes
